T-Bar Ceiling Installation

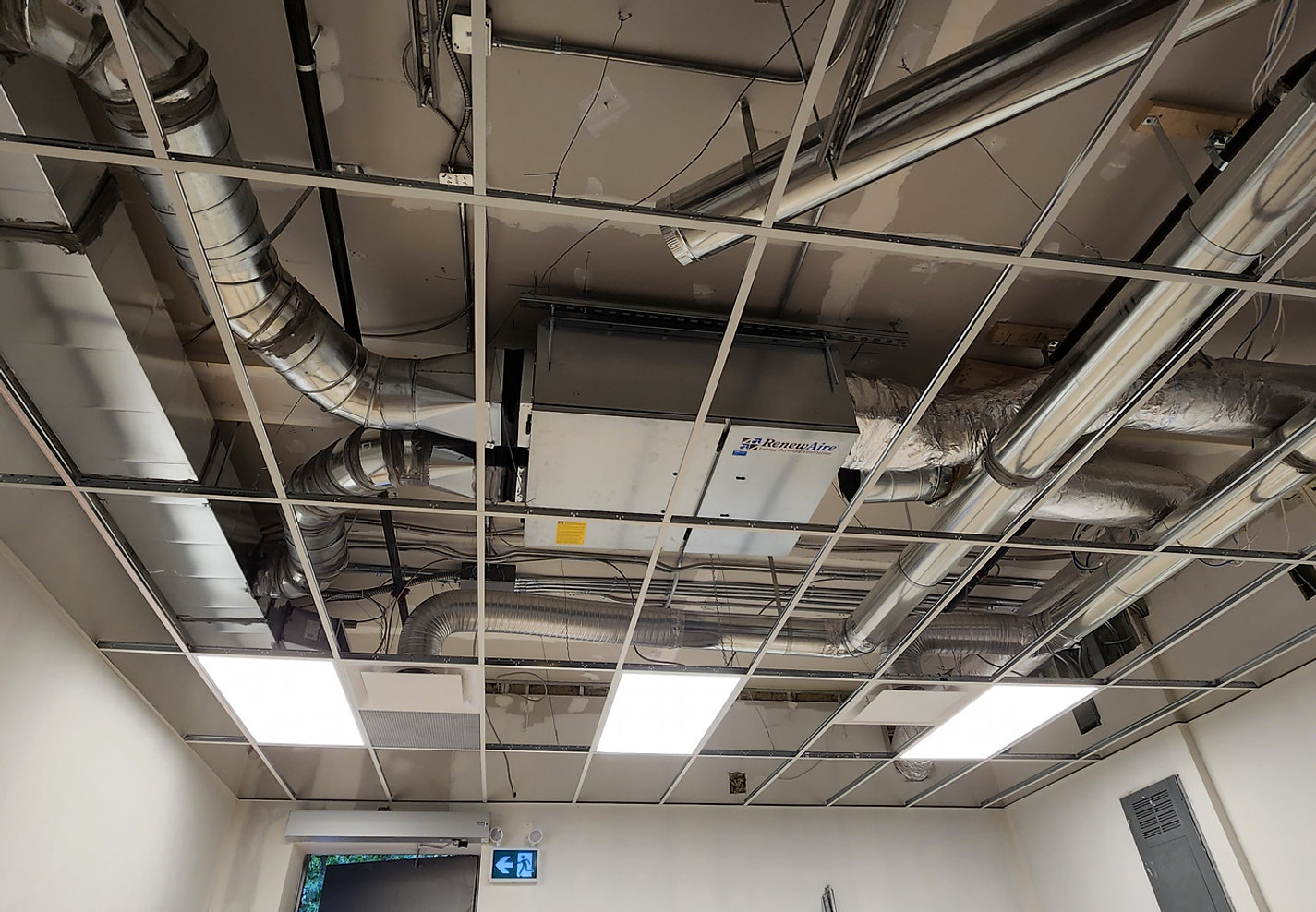

The visible grid is formed by intersecting metal members. Main tees run through the ceiling layout, cross tees form the panel openings, and a perimeter wall angle provides the edge detail. The grid is suspended below the structure; its layout must suit the room and the selected ceiling components.

This overview explains the system rather than providing installation instructions. Suspension details, clearances and coordination requirements belong in the project specification and must follow the selected system’s requirements.

T-bar ceilings are used in offices, retail units, restaurants, medical spaces and community buildings where a finished ceiling and access above it are both useful. The room’s use helps determine the suitable tile finish, acoustic characteristics and maintenance needs.

For a new installation, the ceiling layout needs to work with partitions, bulkheads, lights and mechanical services. Agree on trade responsibilities and access requirements before work starts. Our commercial drop-ceiling page outlines the planning questions for different types of space.

Common nominal modules are 2 × 2 ft and 2 × 4 ft. They produce different grid patterns and may require different cross-tee arrangements. The choice is affected by room dimensions, lighting, panel selection and the appearance of the borders.

Panel dimensions alone do not establish compatibility. The grid face, tile edge detail and product system must also be checked. An existing ceiling may allow a limited update, or the intended new layout may require grid changes.

Tile replacement and grid replacement are separate scopes. A grid that is in suitable condition may accept compatible new panels. A damaged, misaligned or unsuitable grid may need additional work before a new finish is installed.

Send photographs of the whole ceiling and close-ups of the panels and grid. Identify stains, damaged areas, changed partitions or new lighting positions. The cause of water damage needs attention before replacement panels are fitted. Product matching and availability also affect a repair proposal.

Acoustic panels can help control sound reflection within a room, but their performance varies by product and assembly. Select them for the room’s actual needs rather than assuming every ceiling tile offers the same result.

Black grids and compatible dark panels can create a different visual finish from a white ceiling. They also affect the way a room reflects light. Where that finish is part of the design, ask about system compatibility and availability during quoting. A particular brand, finish or performance rating is not promised without a confirmed specification.

Include the project location, approximate area, ceiling height, existing conditions and intended tile or grid finish. Drawings and photos can show whether the work is a new installation, a replacement or a repair. Mention restricted access and whether the premises will remain occupied.

If the ceiling meets new partitions or bulkheads, review the metal stud framing service as part of the same planning conversation. Request a quote to define the proposed work and its exclusions.
